Access and traffic control has been a major concern of security staff of any organization. Access Control Tripod Turnstile Gate controls traffic and provides facilities for monitoring and controlling traffic and access of personnel and clients; Access Control Tripod Turnstile Gate decreases requirements for human forces.

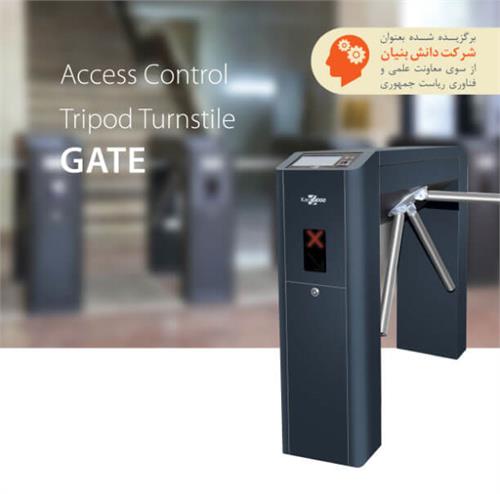

Access Control Tripod Turnstile Gate
Key Features:
> Capable for being used in public, academic, organizational and sport places
> Capable for releasing the arm (automatically) during power outages or emergencies
> Using the remote controls for special traffics, changing direction, or releasing the arm
> Capable for being used in unilateral or bilateral modes
> Capable for being equipped to fingerprint controller or camera or card reader
> Recording traffic and attendance addition to controlling allowed and not allowed traffics
> Capable of being connected to emergency mode sensor to release the gate in certain situations
> Being equipped with anti-return system to prevent reverse circulation of levers
> Detection aimed at preventing traffic from the opposite direction
> Capable of being connected to software or settings for reporting traffic conditions


Cost Effective Gate

  • The turnstile is more accurate and reliable for zero point locking and unlocking.
  • Heavy Duty & Maintenance Free
  • Failure self-detect and alarm indication function, facilitating maintenance and application for the users.
  • Multi Function & without limit for operation modes and Access Control Install.
  • Automatic function of opening or closing when power off.
  • Multi-Function of Access Control Terminal installing
  • Anti Pass-Back System, (the system will cancel the people passing right when reading the Access Request but not passing, the time can be set.)

  • Power Voltage: AC220V/110V±10% 50HZ/60HZ
  • Operation Temperature: -25°C to +75°C
  • Relative Humidity: <90%, no condensation
  • Access Width: ≤530mm
  • Passing Speed: ≤40 Persons/min. (IC Card)
  • Motor: 0.5NM/24V (Fully Automatic)
  • Input Connection: +12V Level Signal or Pulse Wide>10ms DC12V
  • Material: Stainless Steel 304; Thickness is no less than 1.5mm
  • Colour: Power Coating Black / Other Colour and Stainless Steel (Optional)
  • Operation Place: Subway Station, Hoverport, Tourism, Sports, Exhibition, Swimming Hall, Residence Area, Enterprise Entrance and Exit,Attendance, Gateway Guard,Charge Management, Special AccessControl, etc.
